This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Застосування:

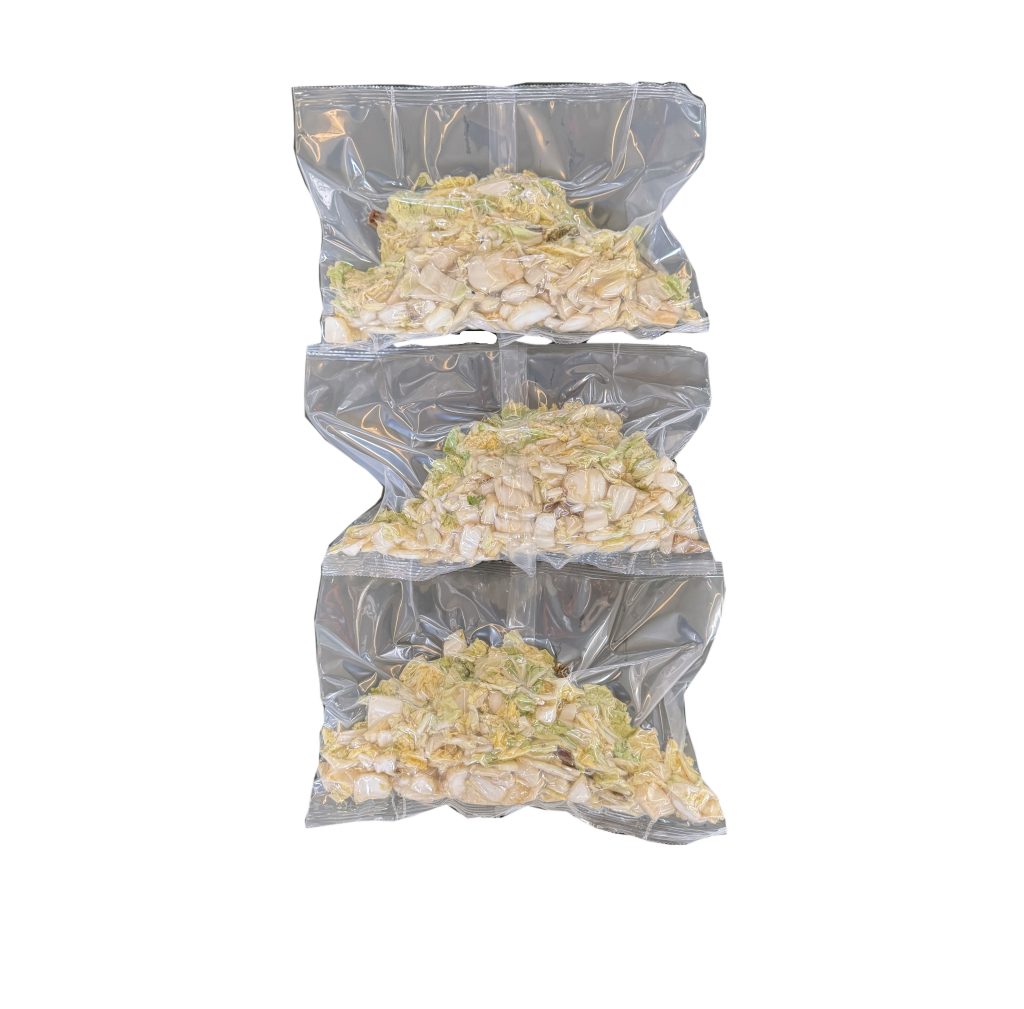

It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Особливості:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Вступ :
Ця машина може автоматично реалізовувати функції виготовлення мішків, наповнення, запечатування, друку, різання тощо. Ця машина може автоматично досягати наповнення та запечатування мішків.
Ця пакувальна машина використовує імпортний серводвигун для подачі плівки, а інтерфейс «людина-машина» використовує вдосконалений сенсорний екран. Експлуатація простіша та зручніша. Усі компоненти використовують відомий міжнародний бренд, ПЛК SIEMENS, серводвигун PANASONIC, сенсорний екран SIEMENS, циліндр і повітряний клапан SMC. частини, які контактують з матеріалом 、шафа керування 、основна рама виготовлені з нержавіючої сталі304
Технічні параметри:
| Модель | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Довжина сумки | 150-480mm by secondary film pulling the bag length can be longer |
| Ширина пакета | 120-375mm(Side width +front width ) |
| Ширина плівки | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Потужність | 6KW 380V±10% 50Hz |
| Розмір машини | 1650*1500*1750mm |
| Вага машини | 650 кг |
